Frame Tents
Standard Frames

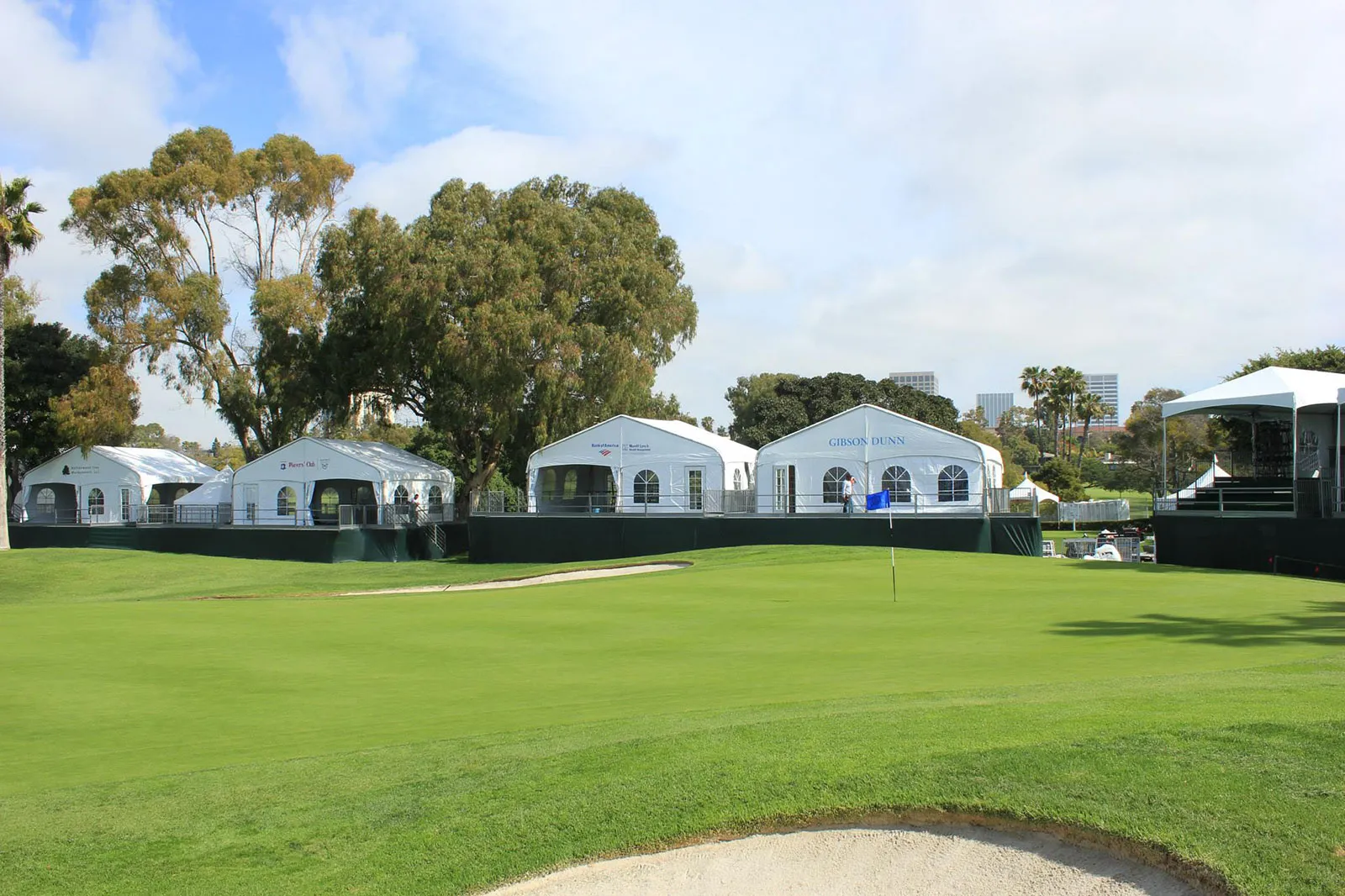

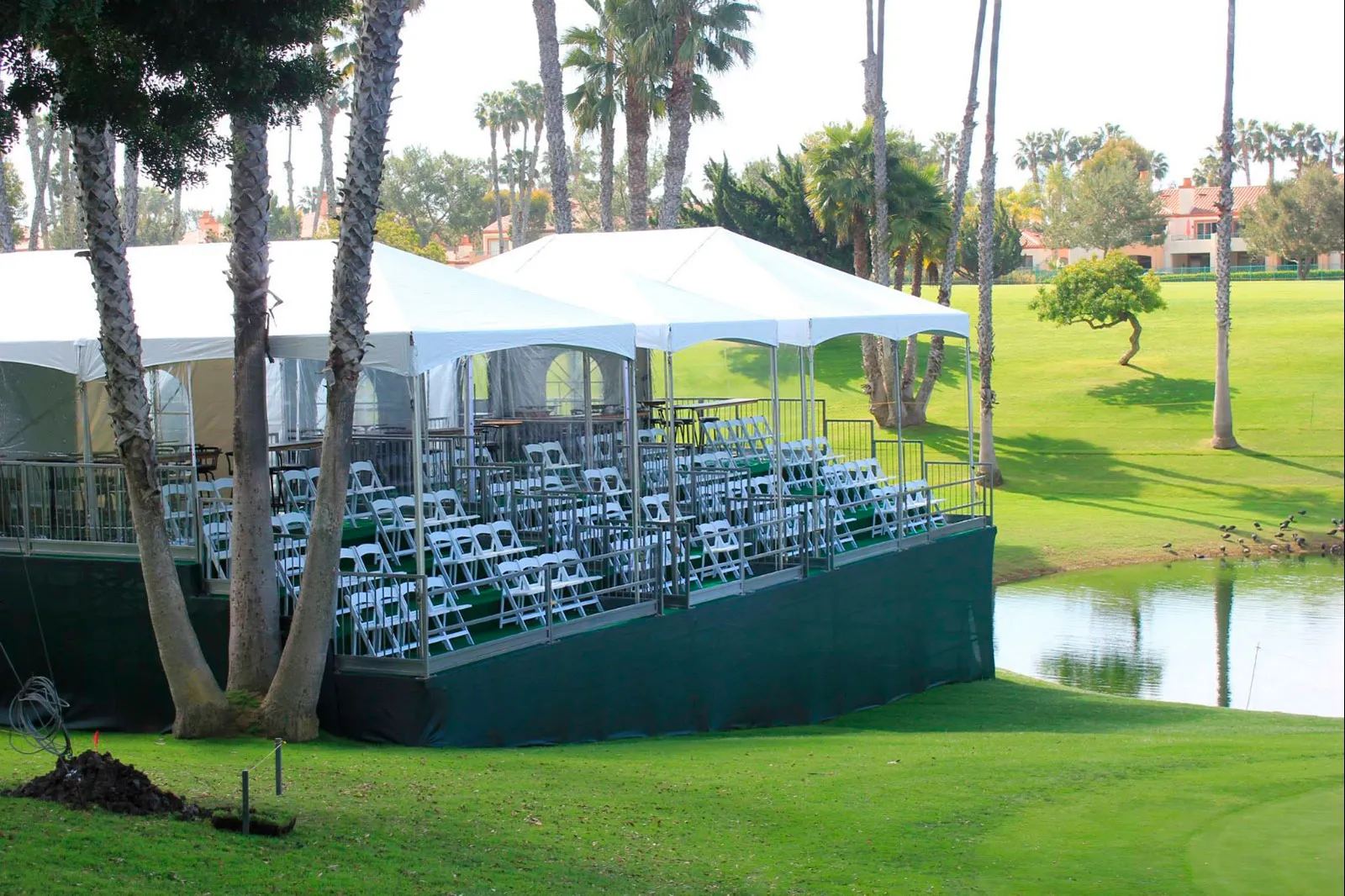

The standard frame tent is the most used tent in the rental, commercial and events industry.
They come in one-piece and expandable style. Expandable style allows for sectional addition in any required length.
The one-piece tops are fixed sized. Available in widths from 10x to 40x. The expandable tops are split. You have the option of adding middle sections, 5x, 10x, 15x, 20x and increment the length to the required size.
The tops are attached at the seams with lace, clips (male/female) or plastic buckles and a weatherproof storm flap, and we will match your current inventory. These tops are available in many colors, in blackout and translucent, including stripes.
The frames and the expandable frames include all the fittings (connections), pipe and assembly pins, also for the expandable frames we included the "crown" for the square sizes and the expanded sizes.
Specifications
Published figures only. Anything not published is marked TK, not estimated.
Frame
| Tubing | 6061T6 aluminum, commercial clear anodized |
|---|---|
| Fittings | 1¼" Sch40 steel pipe, zinc plated |
| Assembly | Fittings, pipe and assembly pins included |
| Crown | Included on expandable frames, square and expanded sizes |
Fabric
| Standard top | 14–16 oz vinyl, white blackout or translucent |
|---|---|
| Fabric | 1000 denier, with mildew resistance, UV protection and flame retardant |
| Options | Many colors in blackout and translucent, including stripes |
| Seam attachment | Lace, clips (male/female) or plastic buckles. We will match your current inventory. |
| Flame retardant code | Compatible with NFPA 701 |
Dimensions
| Widths | 10′ to 40′ |
|---|---|
| Middle sections | 5′, 10′, 15′, 20′ increments |
Anchoring
| Stakes | Optional, 1" × 42" double head |
|---|
Width range
Widths from 10′ to 40′. On Standard Frames, expandable tops add middle sections in 5′, 10′, 15′ and 20′ increments.
- 10′
- 15′
- 20′
- 30′
- 40′
Drawn to relative scale
